Visualized: Countries by Grid Storage Battery Capacity in 2023
Visualized: Countries by Grid Storage Battery Capacity in 2023
According to the International Energy Agency, 1300 GW of battery storage will be needed by 2030 to support the renewable energy capacity required to meet the 1.5°C global warming target. But how close is the world to reaching that target?
The Energy Institute’s annual Statistical Review of World Energy reveals the grid storage battery capacity of every country in 2023.
This treemap, created in partnership with the National Public Utilities Council, visualizes which countries had the most grid-scale battery energy storage systems (BESS) in 2023.
The U.S. and China’s Acceleration
China has nearly half the world’s grid storage battery capacity and keeps growing at a breakneck pace. From 2022 to 2023, the country added over 19 gigawatts of storage to its grid, moving from 7.8 to 27.1 GW.
| Country | 2023 Installed Capacity, GW | Share, 2023 | Growth Rate, 2022–2023 |
|---|---|---|---|
| 🇨🇳 China | 27.1 | 48.6% | +249.1% |
| 🇺🇸 U.S. | 15.8 | 28.3% | +70.0% |
| 🇬🇧 United Kingdom | 3.6 | 6.5% | +54.2% |
| 🇦🇺 Australia | 1.8 | 3.2% | +95.1% |
| 🇩🇪 Germany | 1.7 | 3.1% | +27.9% |
| 🇰🇷 South Korea | 1.0 | 1.8% | n/a |
| 🇯🇵 Japan | 0.6 | 1.0% | +76.7% |
| 🇮🇪 Ireland | 0.4 | 0.8% | +27.6% |
| 🇨🇦 Canada | 0.4 | 0.7% | +426.1% |
| 🇿🇦 South Africa | 0.3 | 0.5% | +29300.0% |
The U.S. also significantly increased its capacity in 2023, moving from 9.3 to 15.8 GW. The two largest economies account for over three-quarters of the world’s grid storage battery capacity. California’s 8.6 GW is the largest capacity of any state and more than twice that of second-place Texas.
Although Canada had only 0.4 GW of storage capacity in 2023, it quadrupled its capacity from the previous year. However, its 426% annual growth rate is still not the highest of the top 10 countries.
It was South Africa that had the largest growth rate of capacity in 2023 due to its new facility in Worcester. Its annual growth rate was 29,300%.
Not all countries in the top 10 are experiencing significant growth. Ireland and Germany’s capacities only grew by 28% from the previous year. Meanwhile, South Korea’s capacity remained the same.
A Promising Future
The International Energy Agency estimates that 1,300 GW of battery storage will be needed by 2030 to support the renewable energy capacity required to meet the 1.5°C global warming target.
Despite ongoing regulatory challenges, such as inadequate environmental protection, the total global grid storage battery capacity in 2023 reached 55.7 GW. This marked a 120.8% increase from the previous year.
At a 120.8% growth rate, the 2030 target will be met two years early, in 2028.
Learn how the National Public Utilities Council is working toward the future of sustainable electricity.
-

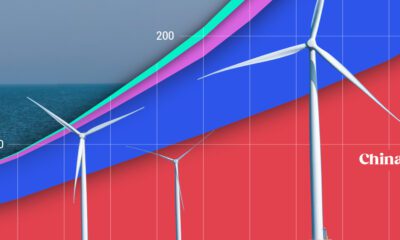

Energy7 months agoVisualized: Offshore Wind Installations by Region (2023–2033)
This streamgraph shows projected offshore wind capacity by region, according to The Global Wind Energy Council.
-
Energy7 months agoRanked: The Largest Power Outages in the U.S. (2013–2023)
Severe weather caused all ten of the largest U.S. power outages in the past decade, highlighting the importance of grid resiliency.
-

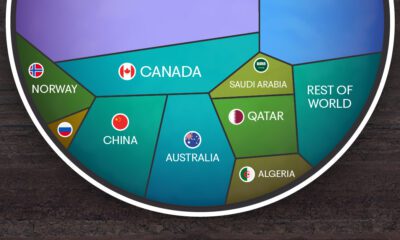

Energy7 months agoVisualized: Which Countries Capture the Most Carbon?
This voronoi depicts the countries that capture the most carbon globally in 2023, with data from Rystad Energy.
-

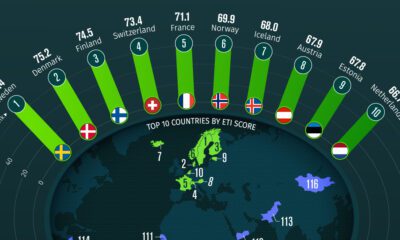

Energy7 months agoRanked: Energy Transition Scores by Country in 2024
This bar chart shows the countries’ highest and lowest energy transition index scores determined by the World Economic Forum.
-

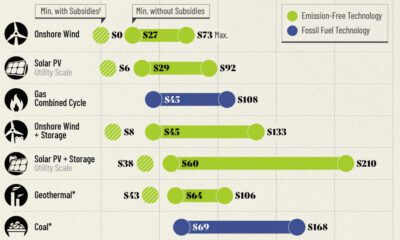

Energy7 months agoRanked: America’s Cheapest Sources of Electricity in 2024
